My Collection: Thorn Beta 5 (2)

Manufacturer Thorn
Catalogue Number (model) Beta 5
Wattage 26W
Lamp-Type SOX-E
Gear Original
Ballast Thorn G53332.4
Ignitor Thorn EMI G53311.4 (replacement for G53311)
Photocell Zodion SS12AHD
Date On Photocell 04/01/2013

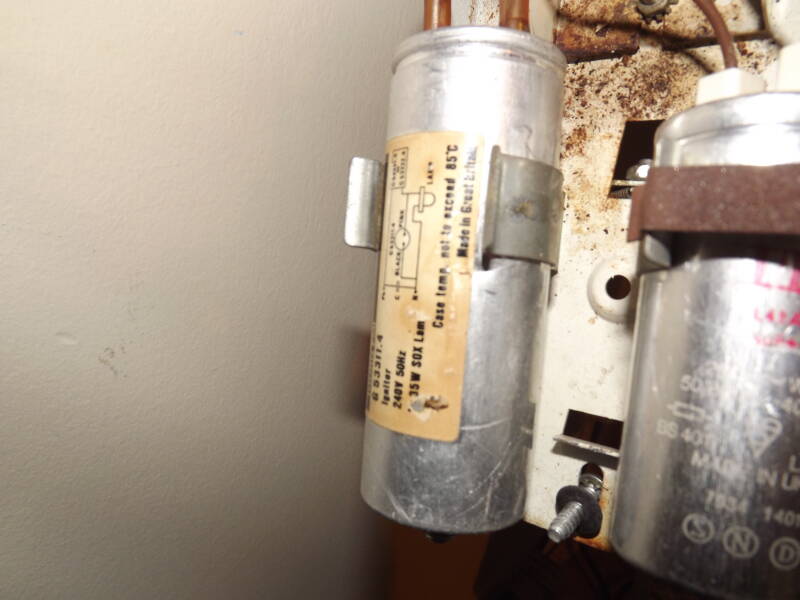

Date On Capacitor ~~/08/1979 (unconfirmed)
Date on Lamp ~~/04/2020
Date Acquired 07/09/2024
Restoration Status Cleaned
Collection Number #62

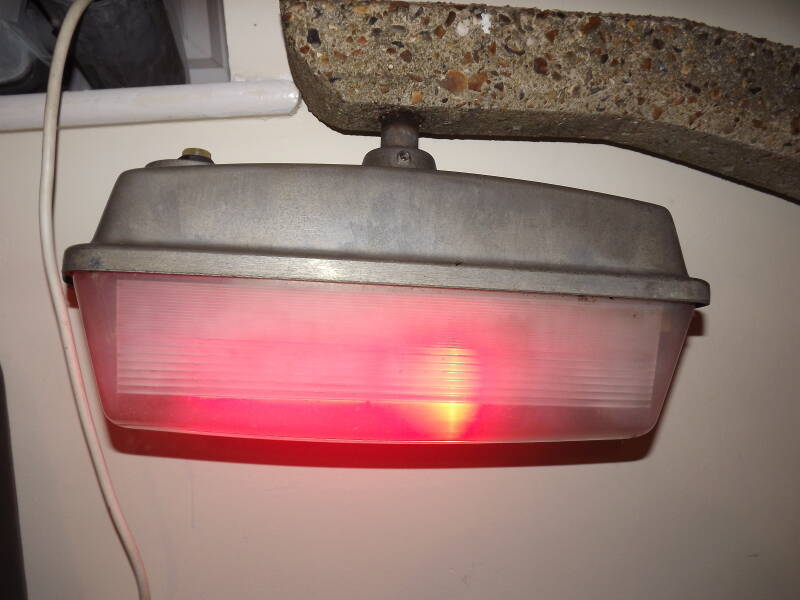

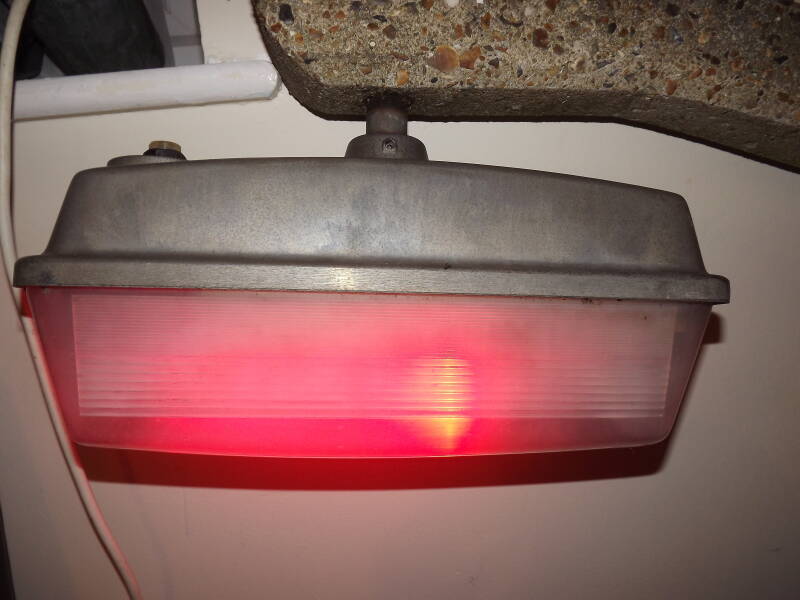

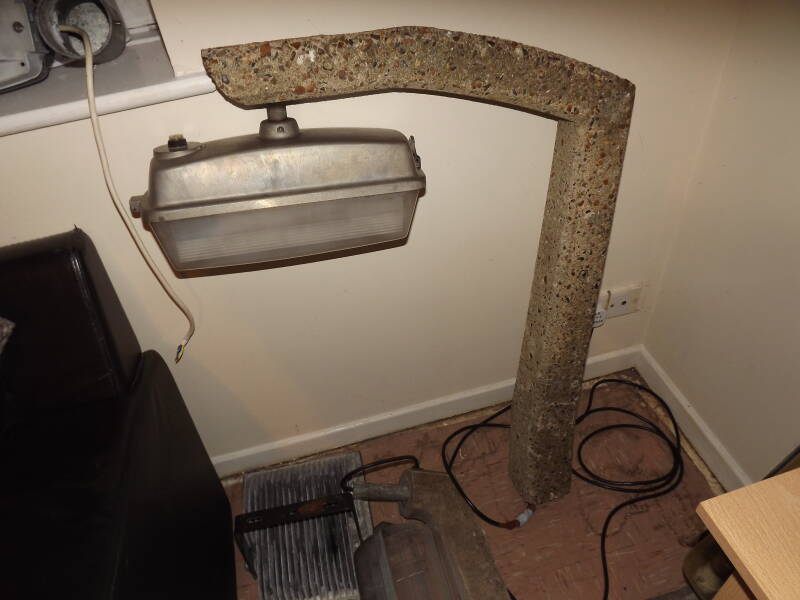

This is the second Thorn Beta 5 to enter the collection. It is a shared asset between me and collector AgentHalogen_87. Coming with a ZP1000 concrete bracket, the whole installation is incredibly heavy, nevertheless, I did manage to find a place to put it. I frequently use this lantern as a nightlight, having it running 26W SOX-E in the corner which provides a nice calm light to the rest of the lantern room.

The Beta 5 is in great condition overall, the acrylic bowl has clouded over-the-decades, but this adds to the look of the installation.

A Zodion SS12AHD cell is fitted atop the canopy, but this would have been a replacement for a two-part cell.

The lantern was fitted with one of my 26W SOX-E lamps, which will now remain with the lantern. I hand-wrote a date on the lamp reading "LC 15/09/2024"

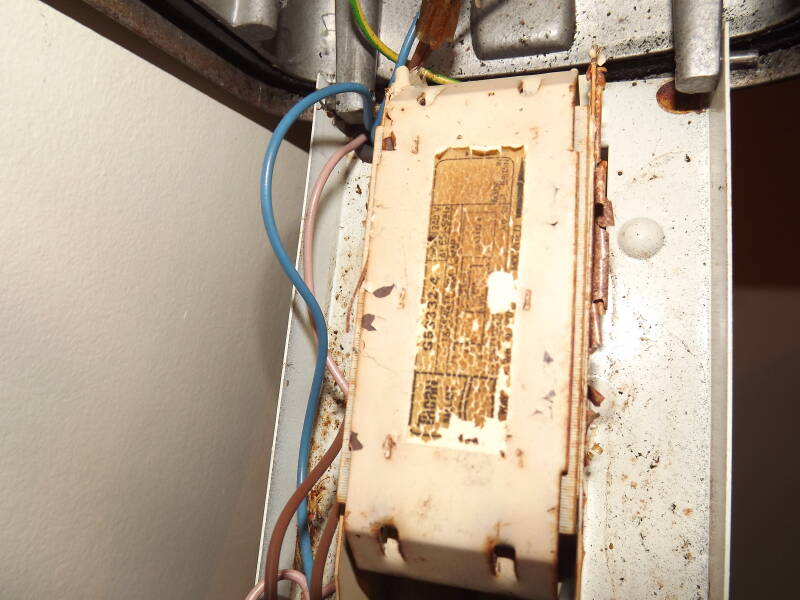

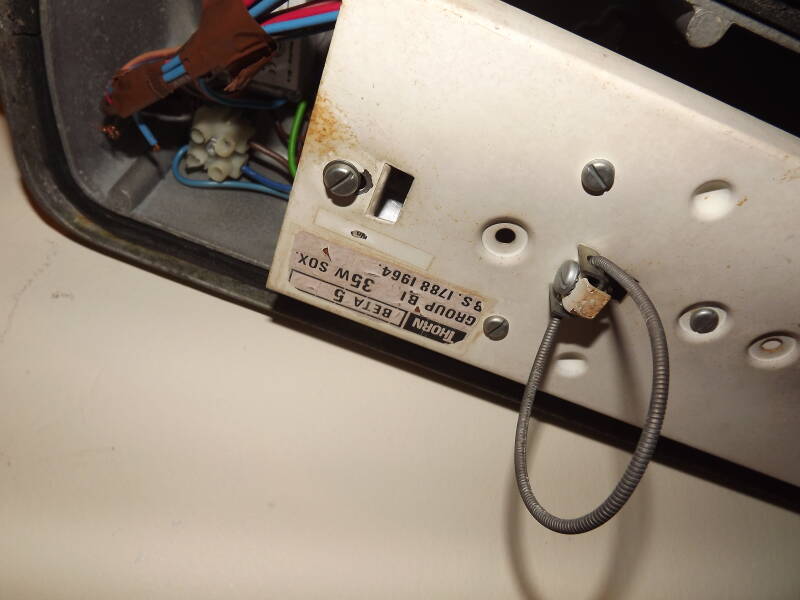

The identification sticker is located on the gear-tray, along with the remains of a Mk. sticker.

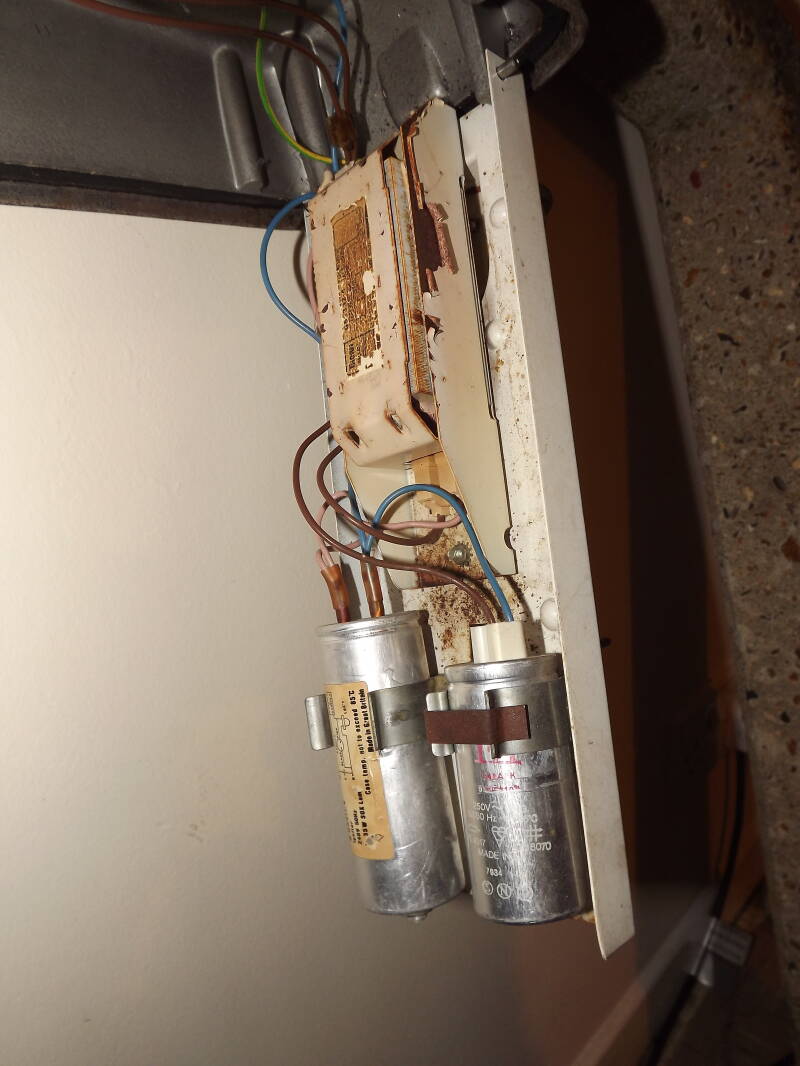

The tray is on a hinge, and removing the screw at the from allows it to hinge down.

The Beta 5 was tested in early September 2024 and worked like a treat!
