MY COLLECTION: URBIS Altra 2 (1)
| Manufacturer | Urbis |
| Catalogue Number (model) | Altra230 |
| Wattage | 36W |
| Lamp-Type | PL-L |
| Gear | Original |
| Ballast | Philips HF-P 136 PLL EII 220-240 HF-PERFORMER II |
| Photocell | Zodion SS6 |
| IP Rating (when new) | IP65 |
| Date Of Manufacture | 11/08/2005 |
| Date on Lamp | ~~/08/2023 |
| Date Acquired | 02/01/2024 |
| Restoration Status | Cleaned |
| Collection Number | #17 |

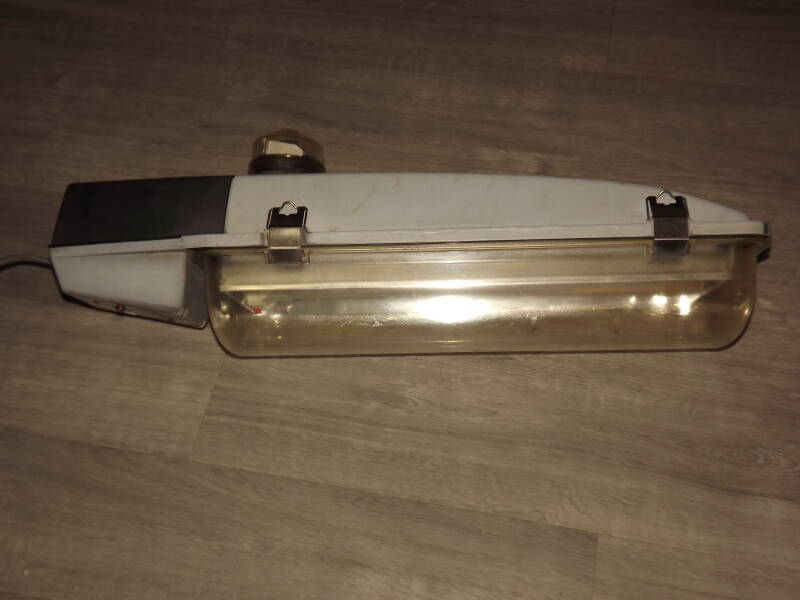

This is an Urbis Altra 2, obtained on the 02/01/2024. It's original location is not known but it was likely used as a temporary lantern for a short while after it's service due to the (8.23) date on the 36W PL-L lamp. It is my first fluorescent lantern, and I'm glad it was one of these!
A view with the bowl open!

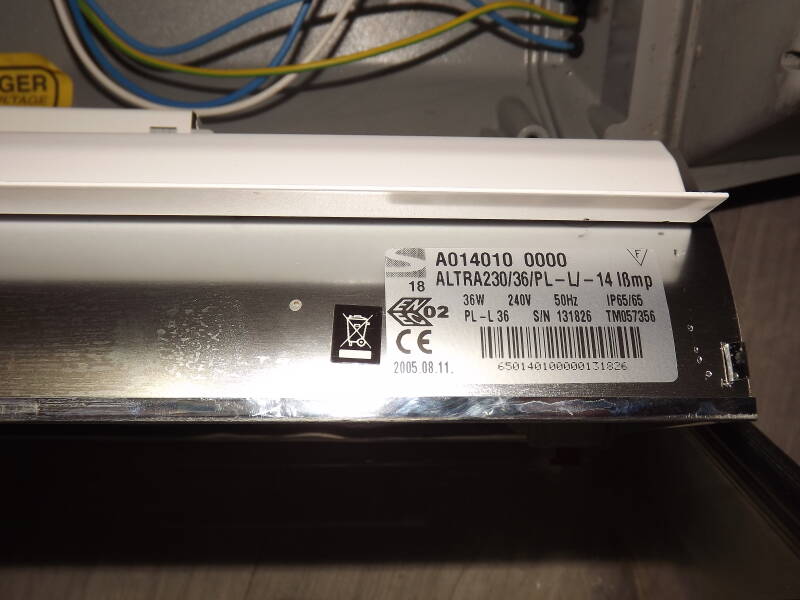

The original date of manufacture (or near enough) of the lantern is 11/08/2005 as stated by it's sticker. for it's age, the IP65 rated lamp compartment was remarkably clean! That rating still stood strong then!

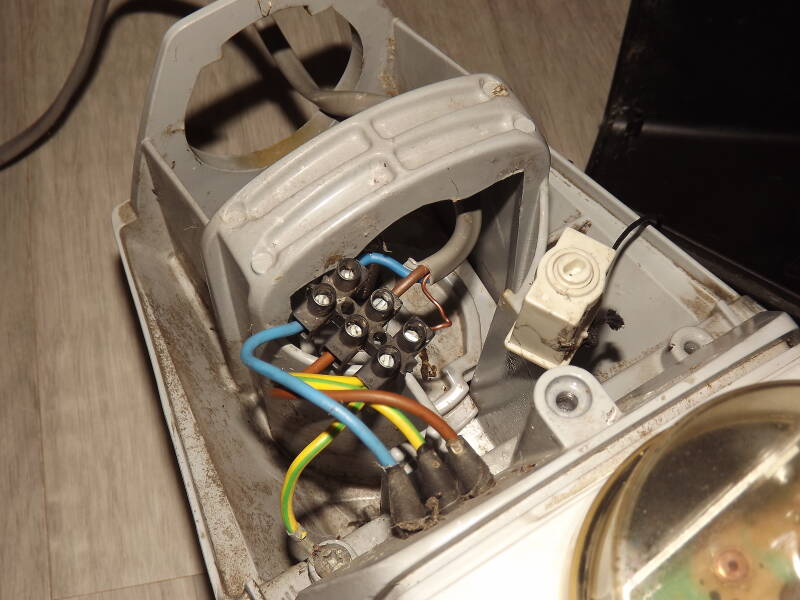

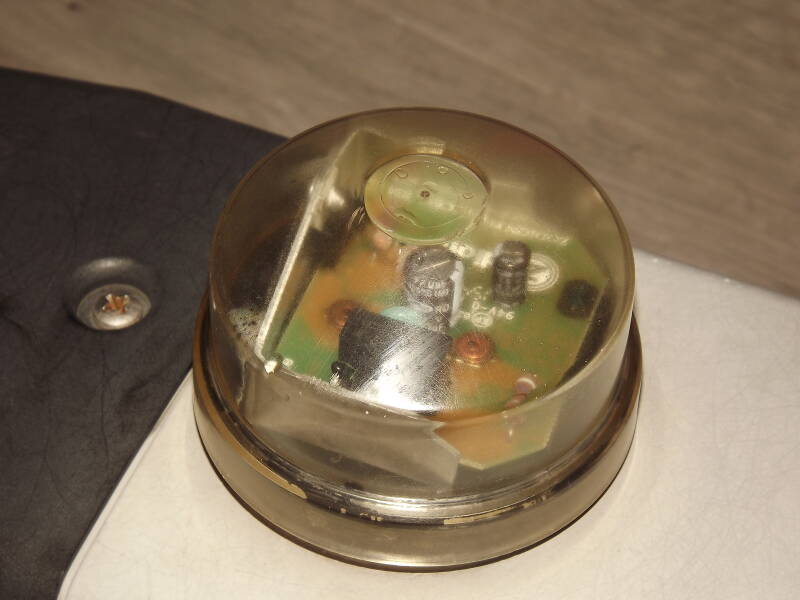

It came with a Zodion SS6 photocell fitted, with a Royce-Thompson socket.

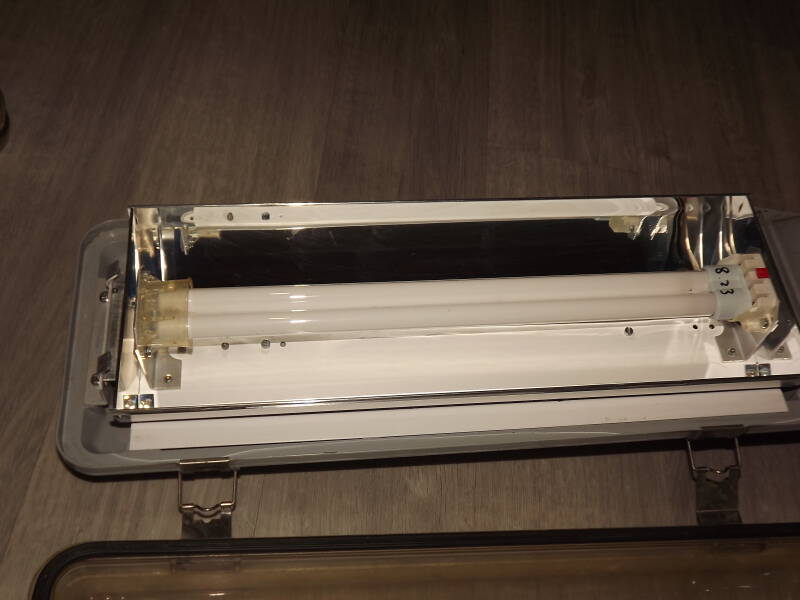

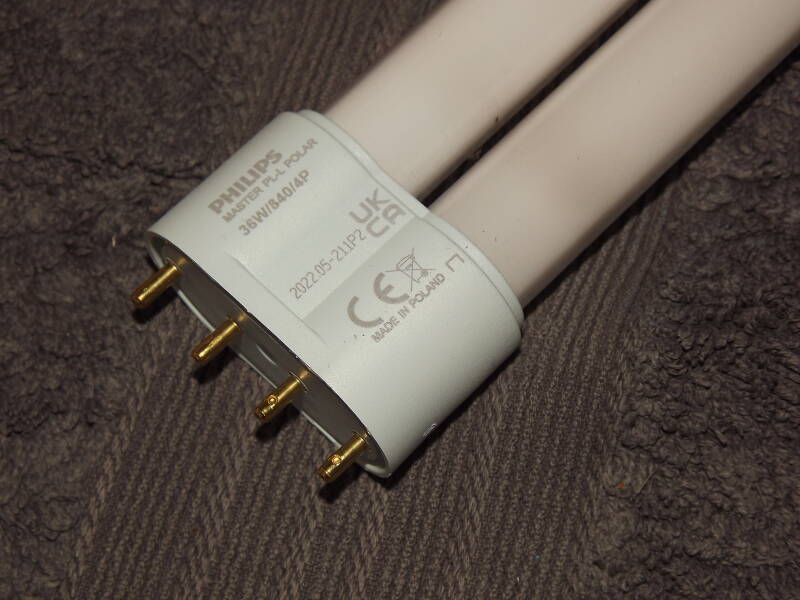

A closer view of the 36W PL-L bulb.

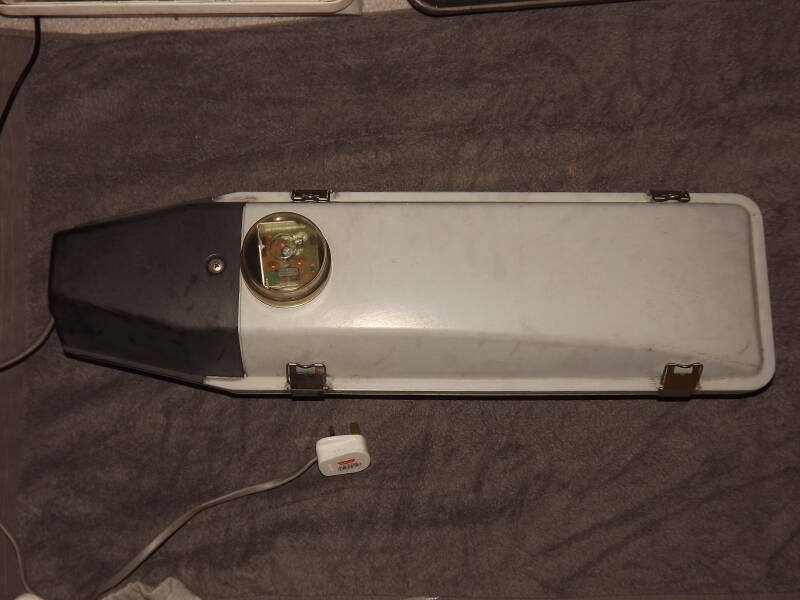

The lanterns top profile: measuring approximately 27 inches long, and 8 inches wide.

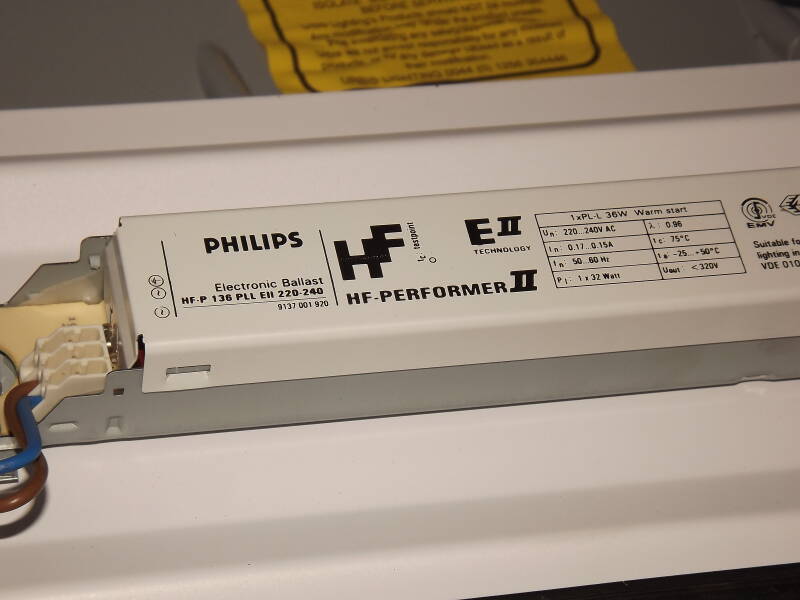

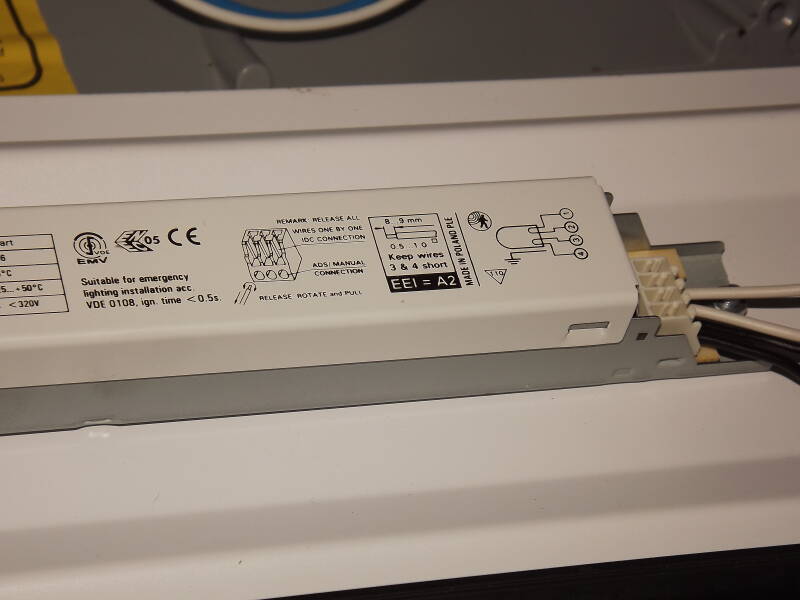

The lantern uses an electronic Philips HF-P 136 PLL EII 220-240 ballast to power the lamp. We can break down the name to understand what the ballast actually is. HF-P stands for High Frequency-Performer: the name of the ballast. 136 PLL comes from the ballast being able to run 1x36W PL-L bulb. The EII label arises from the EII technology used in the ballast and, finally, the 220-240 is derived from the voltage the ballast is intended to run on.
