My Collection: GEC Z9484
| Manufacturer | GEC |
| Catalogue Number (model) | Z9484 |
| Wattage | 26W |
| Lamp-Type | SOX-E |
| Gear | None (remote-geared) |
| Photocell | Zodion SS12C |
| Date Of Manufacture | 1960s-1980s |
| Date On Photocell | ~~/12/2021 |
| Date on Lamp | ~~/01/2018 |
| Date Acquired | 08/01/2025 |
| Restoration Status | Cleaned |
| Collection Number | #141 |
This lantern is the SOX version of the Z9494. It was purchased from a seller on eBay, and arrived on the 8th January 2025. It's a very small, sleek lantern, just-barely big enough for a 55W SOX lamp. Overall it's in acceptable condition, though it is missing a gasket seal and bowl clip.
The canopy is a simple piece of aluminium, boasting quite a unique shape among other SOX lanterns of the time.
The Zodion SS12C was fitted by me, but it could have had a minicell (or two-parter) previously. Judging by the outline around the cell, it may have been something like a Royce Thompson P42 two-parter.

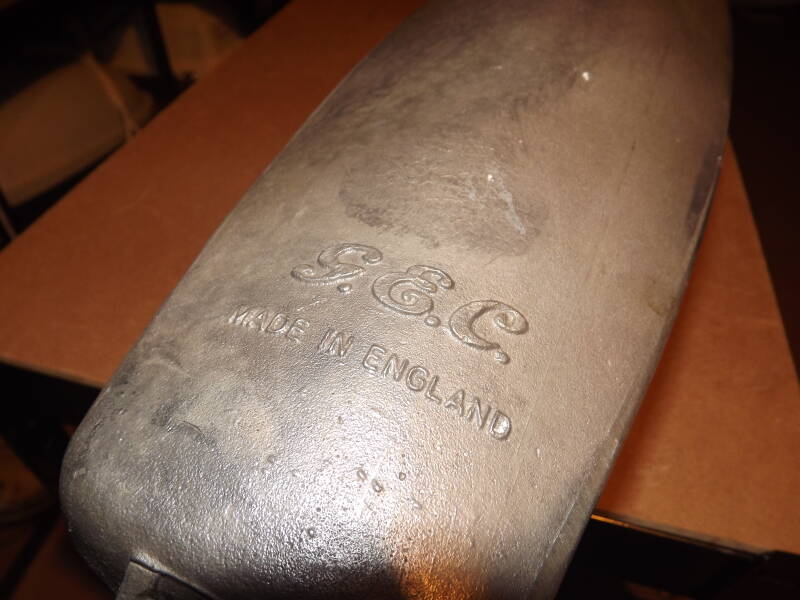

GEC's logo is present on the front of the canopy:
A section of the column remains seized in the spigot, I have tried to undo the grub-screws, but they wouldn't budge.

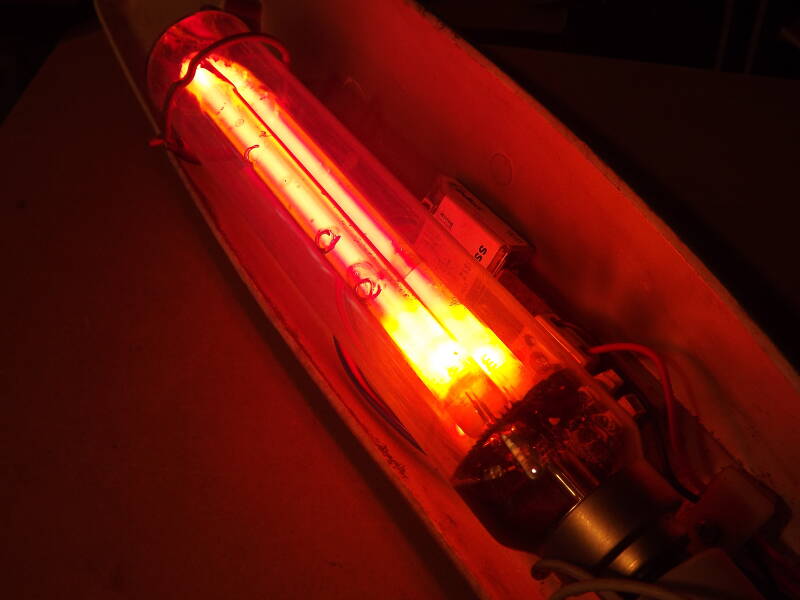

There's not much happening inside the lantern, just the lamp and photocell.
The lamp is dated to January 2018.

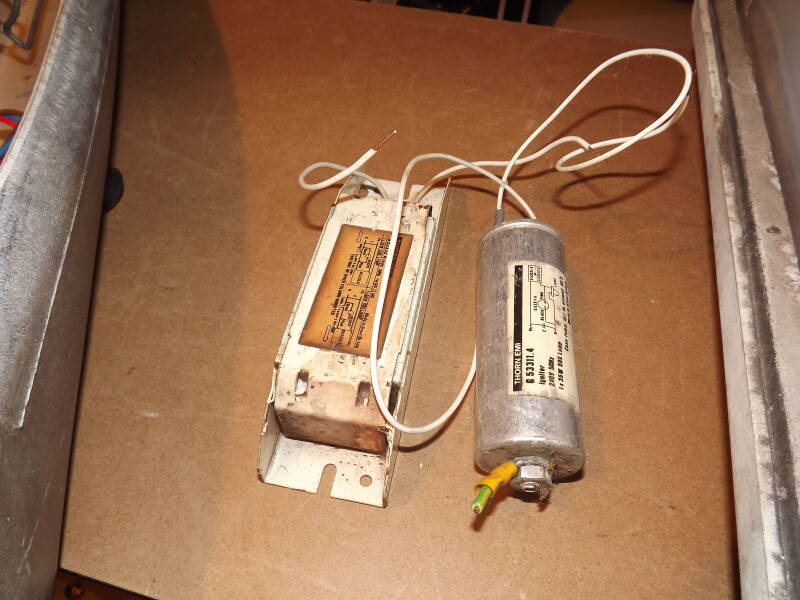

A gear was supplied with the lantern, but it likely isn't the original gear the lantern ran on.

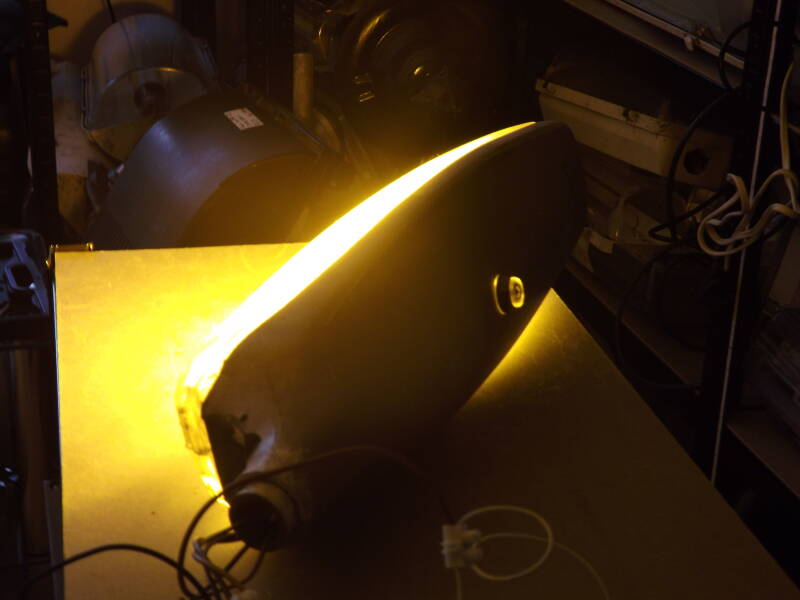

The photocell caused some light-spilling from the top of the lantern:
